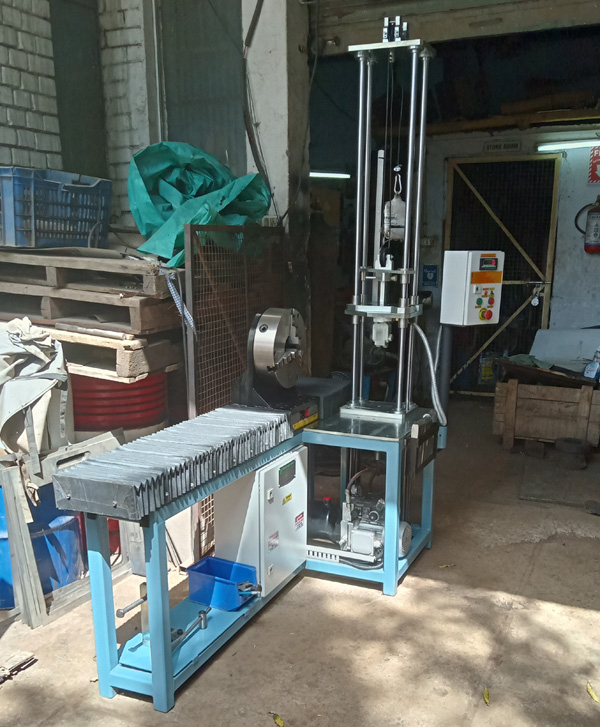

Torque test setup for Pipe Wrench, Chain Wrench and Bolt.
This machine works as a Torque Testing apparatus
A. STATIC LOAD (IS 4003 PART1, IS 4003 PART2,IS 4123)
Static load is to be applied at the handle of Chain/Pipe wrench at varying distances from the center of the test specimen. The torque specification ranges from 180-6500 Nm. The application of load point distance from the center of the test specimen varies from 120-1300mm, depending upon the size of Wrench.
B. STATIC SHOCK LOAD (IS 4003 PART1, IS 4003 PART2)
Static Shock load of 13,18,22,27N (individually for different pipe wrenches) is to be applied only for Pipe Wrench testing. This static shock load is to be applied in conduction with the reduced static load.
C. STATIC LOAD/CANTILEVER TEST OF 150 KG(IS 10238)
Load is to be applied to the M16 bolt near head, through thread/wire after fastening the bolt to solid support.
BURST STRENGTH TEST FOR CORRUGATED BOXES
TEST METHOD FOR BURSTING STRENGTH TEST IS: 1060 (PART-1)-1966
CLAUSE 12.5
It is used to test the bursting pressure of corrugated boxes. The pressure wrt time graph is generated and burst pressure if any is recorded.
Equipment can be run upto pressure of 30 Bar.

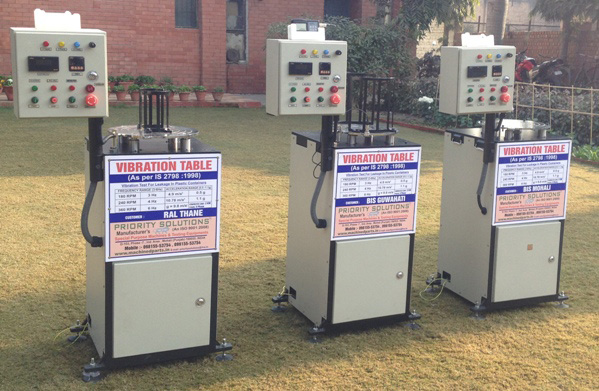

VIBRATION TABLE FOR PET BOTTLES
Purpose of Machine
This machine helps to determine the ability of a closure (or a container) to prevent leakage due to the transport vibration. As per IS 2798: 1998.
Operate the table between 3,4 and 6Hz ( 180, 240 and 360 RPM) for the predetermined period to give a peak acceleration in the range of 0.5 to 1.1g ( 4.9 m/s2 to 10.78 m/s2).
DROP TOWER IMPACT TEST FOR HIGH STRAIN IMPACT TESTING

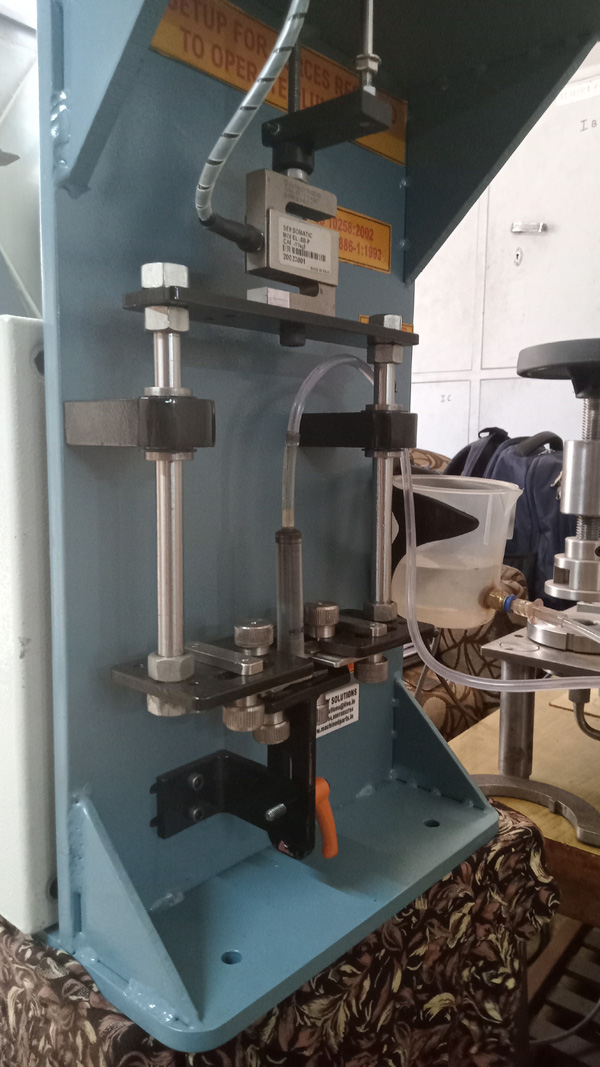

TEST TO DETERMINE FORCES TO OPERATE PLUNGER
FORCES REQUIRED TO
OPERATE SYRINGE PLUNGER
(IS 10258 : 2002, IS0 7886-1 : 1993)
MODEL : PS/FASY-01
CALCULATION OF RESULTS
a)The force required (Fs) to initiate movement of the plunger i.e. the peak force recorded when the testing machine start to withdraw the plunger.
b)The mean force (Ḟ) during return of the plunger.
c)The maximum force (F max) during return of plunger.
d)The minimum force (F min) during return of the plunger.

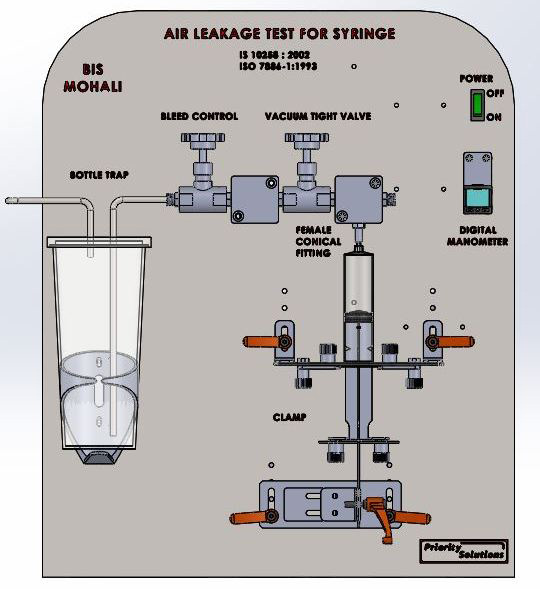

SYRINGE LEAK TESTING RIG
Technical Data
Model: PS/BIS-ALT-02
(L-H-B): 600X500X256MM
Weight overall 34 kg
Supply Voltage: 240V/50Hz Current consumption: 0.5 A Vacuum Range: 0 to -0.9 Bar
Cycle time: 60 sec (0 to +5s)
Control method: On/off switch
TEST METHOD FOR AIR LEAKAGE PAST SYRINGE PISTON DURING ASPIRATION, AND FOR SEPARATION OF PISTON AND PLUNGER

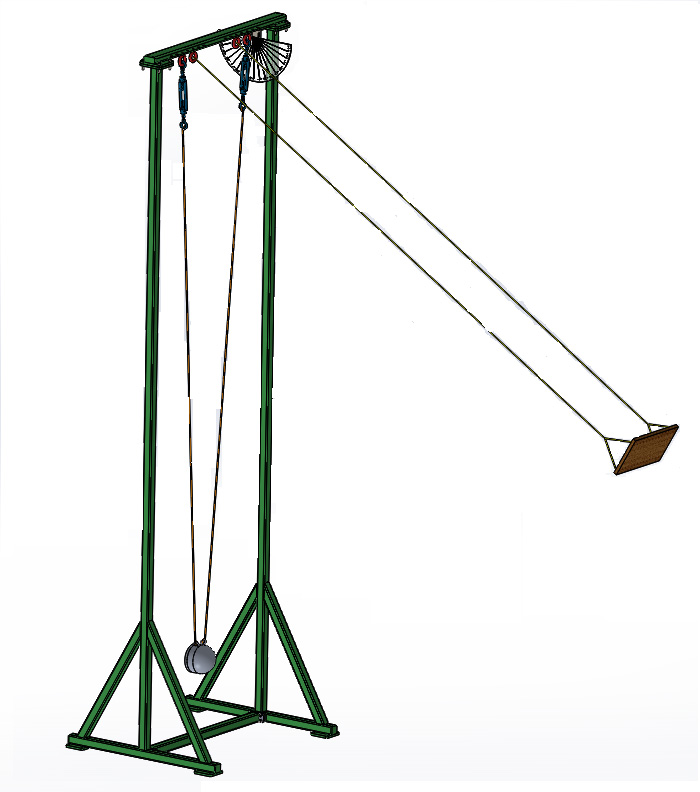

SWING IMPACT TEST RIG
DYNAMIC LOAD TESTING RIG
PURPOSE: To test the dynamic strength test for wheeled ride on toys other than
toy scooters as per cl. 5.24.4 of IS 9873(Part-1):2019 and to perform dynamic
strength for toy scooters as per Clause 5.24 of IS 9873(Part-1):2019.
1 Test Speed: 2 ± 0.2 m/s (for any test load upto 70kg)
2 Step/Obstruction in full width Metallic with 50 mm height
3 Test passage width(inside) 1 meter minimum, to facilitate smooth handling of toy sample and testing.
4 Approx. dimensions of main machine Minimum length:4.70m
